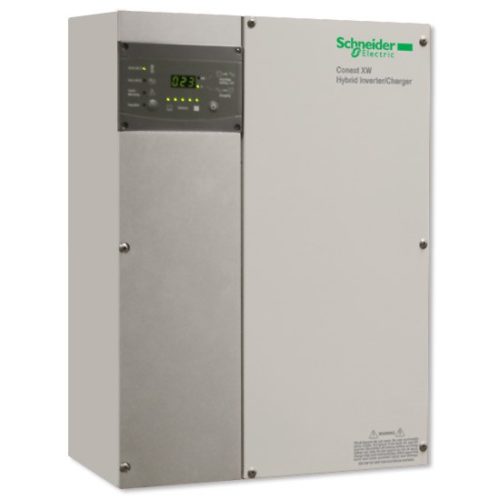

XW6048-230-50 6000W, 48V Off Grid/ Battery Back Up Inverter, Export Model

Part Number: 865-1035-61
Manufacturer: Schneider Electric
AC Frequency: 50
AC Power Rating: 6000 W
PDF-Datasheet: Download Here

The Conext XW inverter/charger features sine-wave power and advanced battery charging technology. The product line offers inverter/chargers in power levels from 4 kW to 6 kW in an expandable configuration allowing for future system growth in either single or three-phase applications up to 36 kW. The products can be used in either a grid-tied with battery backup or off-grid application to suit a wide variety of installations.

Benefits

  • True sine-wave output
  • Models available in 230 V / 50 Hz or 120/240 V/60 Hz
  • 24 V models rated at 4000 VA and 48 V models rated at 4500 VA or 6000 VA
  • High surge capacity – Full 200% rated output power is delivered to loads
  • All models suitable for off-grid or hybrid/backup power applications
  • Single-phase and three-phase configurations possible
  • Up to four inverters can be installed in parallel to create larger single-phase systems up to 24 kVA
  • Up to two inverters per phase can be connected for three-phase installations up to 36 kVA
  • Dual AC inputs (grid and generator) with automatic transfer; external transfer switch not required
  • Efficient, power factor corrected, high-current, multistage battery charging
  • Configurable auxiliary output
  • Non volatile memory stores parameter settings
  • Full control of generator with optional automatic generator start (AGS)
  • 230 V/ 50 Hz model CE and RCM marked and 120/240 V/ 60 Hz model UL/CSA certified
  • Mounting bracket included
  • Local LED display on inverter shows output power, charge current and battery level, to provide system status at-a-glance
  • Network communication capability allows device settings and activity to be communicated to other plug-and-play devices, such as System Control Panel (SCP), Automatic Generator Start (AGS) and MPPT Solar Charge Controllers.

Applications

  • Residential
  • Commercial
