Part Number: SS-20L-24V
Manufacturer: Morningstar
Voltage: 24
Amps: 20
Controller Type: PWM
Meter: No
Length: 6.00 IN
Width: 2.20 IN
Thickness: 1.30 IN
PDF-Datasheet: Download Here
Key Features and Benefits
- Seven versions available
- 100% solid state
- Series design (not shunt)
- True 0 to 100% PWM duty cycle
- Setpoint accuracy 12V: +/-25mV; 24V: +/-48mV
- Fully encapsulated in epoxy potting
- Marine rated terminals / anodized case
- Temperature compensation
- Sealed / Flooded battery select
- Parallel for 40 amps or more

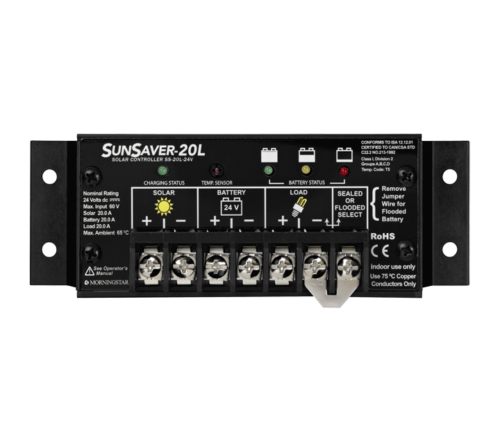

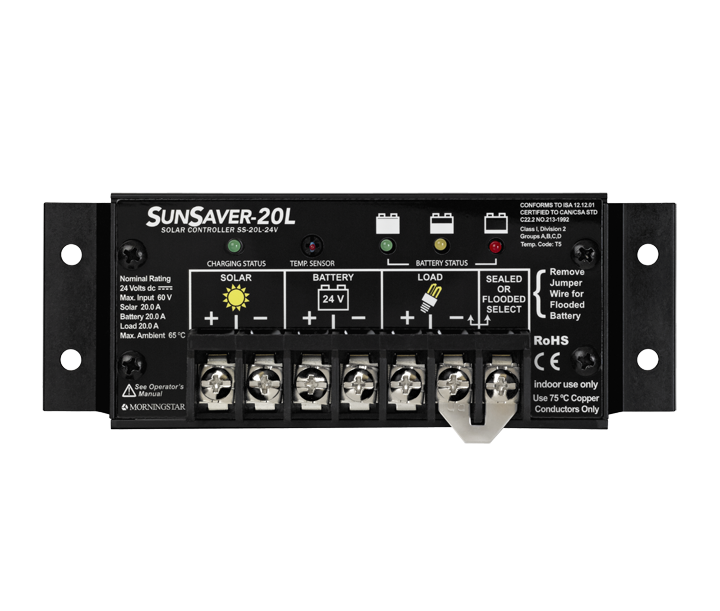

SS20L- 24 SunSaver 20 Charge Controller w/LVD, 24V, 20 Amp
Low Voltage Disconnect feature will turn off load when battery reaches a low state of charge.
