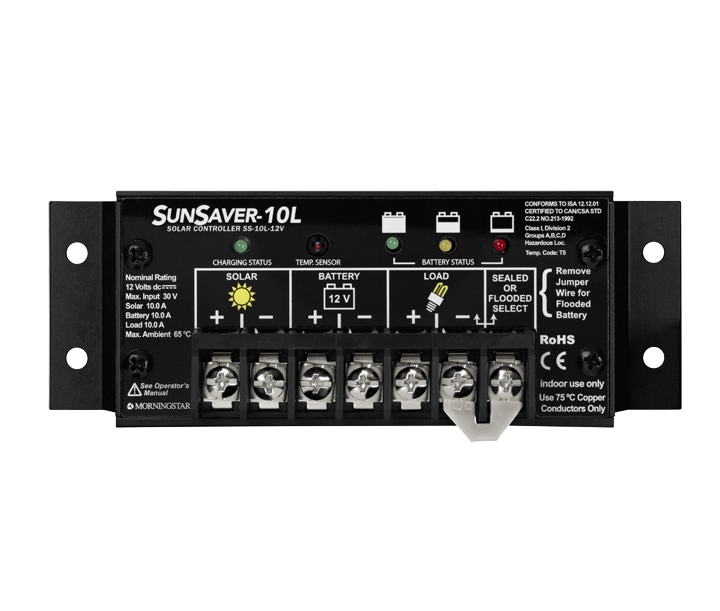

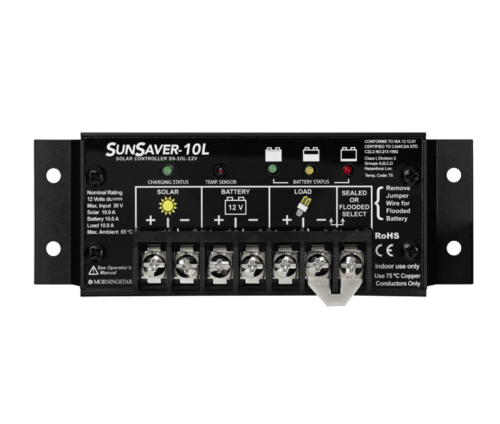

SS-10L-12V, SunSaver- 12V,10 Amp- LVD

Part Number: SS-10L-12V
Manufacturer: Morningstar
Voltage: 12
Amps: 10
Controller Type: PWM
Meter: No
Length: 6.00 IN
Width: 2.20 IN
Thickness: 1.30 IN
PDF-Datasheet: Download Here

Key Features and Benefits

  • Seven versions available
  • 100% solid state
  • Series design (not shunt)
  • True 0 to 100% PWM duty cycle
  • Setpoint accuracy 12V: +/-25mV; 24V: +/-48mV
  • Fully encapsulated in epoxy potting
  • Marine rated terminals / anodized case
  • Temperature compensation
  • Sealed / Flooded battery select
  • Parallel for 40 amps or more

SS10L-12 SunSaver 10 Charge Controller w/LVD, 12V,10 Amp.
Low Voltage Disconnect feature will turn off load when battery reaches a low state of charge.
