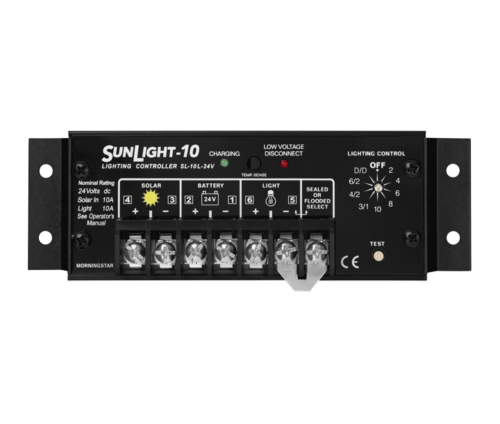

SL-10L-24V, SunLight 10 Lighting Controller 24V, 10 Amp-LVD

Part Number: SL-10L-24V
Manufacturer: Morningstar
Voltage: 24
Amps: 10
Controller Type: PWM
Meter: No
Length: 6.60 IN
Width: 2.18 IN
Thickness: 1.32 IN
PDF-Datasheet: Download Here

Key Features and Benefits

  • Microcontroller digital accuracy
  • Fully automatic operation
  • Ten field adjustable lighting control options
  • Special on/off/on lighting functions
  • Manual test capability
  • LVD override protection
  • Detects day and night using the PV array
  • Suitable for all 12/24 Vdc lamps
  • Sealed/Flooded battery select
  • Temperature compensation
  • Parallel with a SunSaver for 40 amps solar
  • Includes SunSaver battery charging circuit

Morningstar’s advanced SunLight solar lighting controller combines the SunSaver design with a microcontroller for automatic lighting control functions.

  • This technology provides:
  • Proven Reliability
  • Precise Lighting Control
  • PWM Battery Charging
