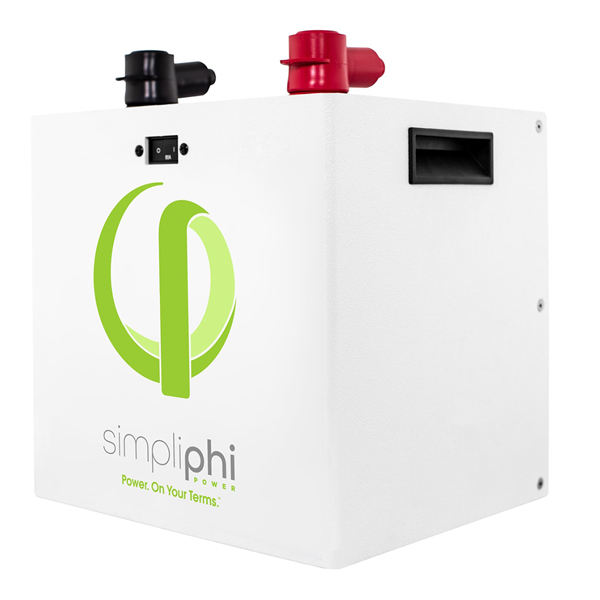

SimpliPhi PHI 2.4 kWh High Output Lithium Battery

Part Number: PHI-2.4kw
Manufacturer: SimpliPhi
Voltage: 24
Amps: 250

Length: 11.25 IN
Width: 11.00 IN
Thickness: 9.50 IN
PDF-Datasheet:  Download Here

The PHI 2.4™ kWh 250 Amp deep-cycle Lithium Ferro Phosphate (LFP) battery is optimized with proprietary cell architecture, power electronics, BMS and assembly methods. It is modular, light- weight and scalable for installations that range from kWh to MWh. Provides power security and seamless integration of renewable and traditional sources of energy in conjunction with or independent of the grid: net zero, peak shaving, emergency back-up, portable and mobile.


  • 24V LFP battery with proprietary architecture and Battery Management System (BMS)—does not require ventilation, cooling or thermal regulation
  • Compatible with all industry standard inverter/charge controllers
  • Drop in replacement for lead acid
  • LFP is the safest, most environmentally benign Lithium Ion chemistry available—no cobalt, risk of thermal runaway or fire
  • No AC or toxic liquid cooling—negligible parasitic drain —long cycle life
  • Non-toxic and non-hazardous recyclable material
