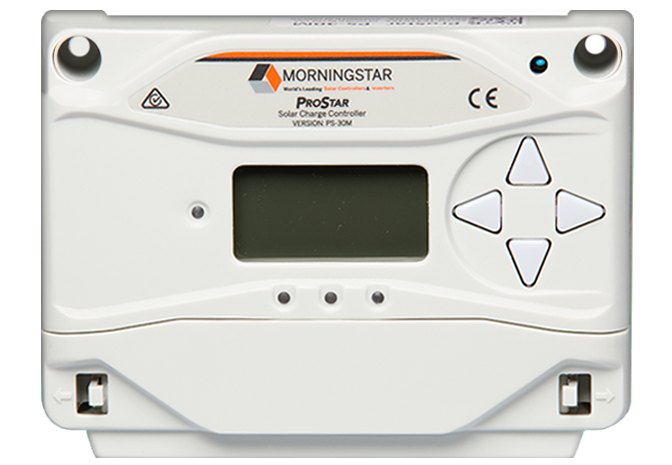

ProStar 30M (Gen 3) Charge Controller- Positive Ground with Meter – PS-30M

Part Number: PS-30M
Manufacturer: Morningstar
Voltage: 12 and 24
Controller Type: PWM
Meter: Yes
Length: 6.0 IN
Width: 4.1 IN
Thickness: 2.2 IN
PDF-Datasheet: Download Here

Key Features and Benefits

  • Estimated 15 year life
  • PWM series battery charging (not shunt)
  • 3-position battery select: gel, sealed or flooded
  • Very accurate control and measurement
  • Jumper to eliminate telecom noise
  • Parallel for up to 300 amps
  • Temperature compensated charging
  • Tropicalization
  • No switching or measurement in the grounded leg
  • 100% solid state
  • Very low voltage drops
  • Current compensated low voltage disconnect (LVD)
  • LED’s to indicate battery status and faults
  • Capable of 25% overloads
  • Remote battery voltage sense terminals
