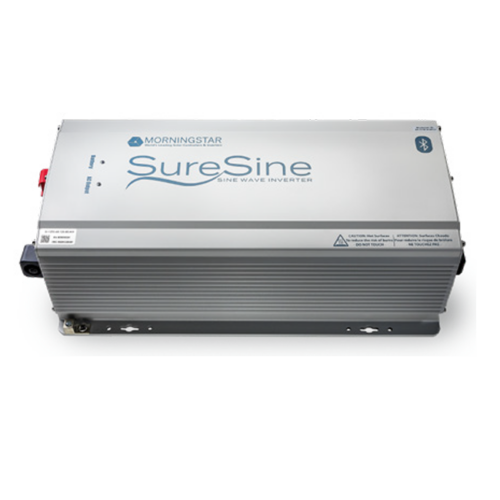

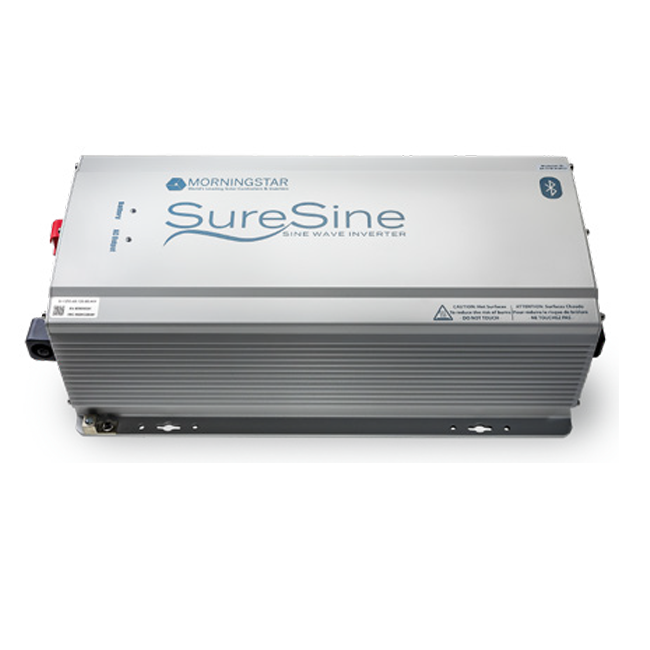

Morningstar Inverter – SureSine 700

Part Number: SureSine 700
Manufacturer: Morningstar
Voltage: 12, 24, or 48
Power Rating: 700W
PDF-Datasheet: DOWNLOAD HERE

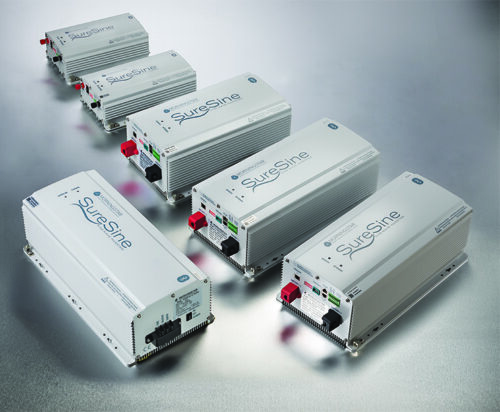

The new SureSine off-grid inverter line is comprised of six new models from 150-2,500W with 120 or 230V output and 12, 24 or 48V DC input options to cover a wide range of off-grid applications requiring a high-performance, industrial-grade, pure sine wave inverter.  They greatly expand our inverter offering that started with the acclaimed SureSine Classic.  This new SureSine line has:

  • Wireless Android and iOS utility apps for set-up and monitoring with remote devices, plus Bluetooth communications
  • Multiple AC hardwire remote terminal options on selected models
  • Industry leading safety, low-noise and high performance NRTL certifications for reliability and system conformance

SureSine line uses industrial-grade build quality throughout, with models built around premium toroidal transformers for improved sinewave stability. Designed for the most demanding off-grid mission-critical installations

  • Superior thermal performance with fanless design means higher reliability– for example, the  300W model doesn’t derate until 45 C and delivers 200W at 60 C.  The small 150W model doesn’t derate even at 60 C!  That’s outstanding performance in their power classes.
  • Full communications capabilities include: RS485, USB, Ethernet, MS-CAN, Bluetooth while using industry-standard MODBUS protocol.

AC options include: hard-wire terminals for all markets and power levels, Type B for North America 150, 300, and 700W versions, and Universal for International 150, 300, and 700W versions.

Wireless Android and iOS utility apps included for set-up and monitoring with remote devices.



Key Features and Benefits

  • Inverter Functions: DC/AC conversion with pure sinewave output
  • Superior industrial-grade product design and manufacturing
  • Engineered for system-level integration and communication with Morningstar charge controllers

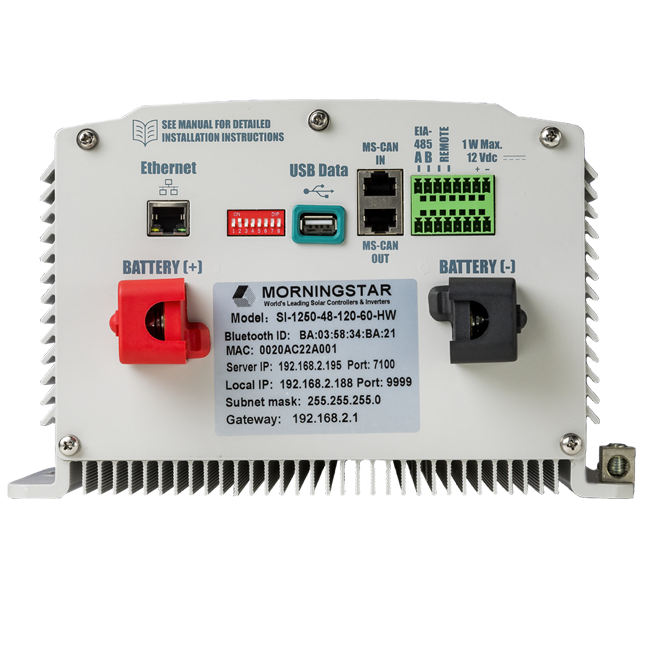

  • Communication ports: RS485 USB, Ethernet, MS-CAN, Bluetooth while using industry-standard MODBUS protocol
  • Wireless Android and iOS utility apps included for set-up and monitoring with remote devices
  • AC hardwire terminal option available on selected models (all power ranges and frequencies)
  • Remote On/Off improves safety and enables control in inaccessible locations
  • Auxiliary Power Output (700-2500 W models) provides power for an EIA-485 bus or other small DC loads
  • Overbuilt, industrial-grade low-frequency transformer for improved sinewave stability
  • Fanless convection cooling with extruded aluminum heat sinking, for maximum efficiency and reliability
  • Status LEDs for both System and AC Sinewave output, to ensure reliable operation and notify of any system alerts
  • Industry leading safety, low-noise and high performance NRTL certifications for reliability and system conformance
  • Configuration can be achieved via manual DIP switch configuration or digitally programmable custom setpoints
