Part Number: FP1-VFX3648
Manufacturer: Outback Power
AC Frequency: 60
AC Power Rating: 3 600 W
PDF-Datasheet: Download Here
NEED A COMPLETE SYSTEM? Package this pre-wired inverter assembly with our solar panels,mounts, and batteries for a turnkey solution! Take the guesswork out of your solar system design – we can engineer, build, and integrate a system to meet your solar needs.

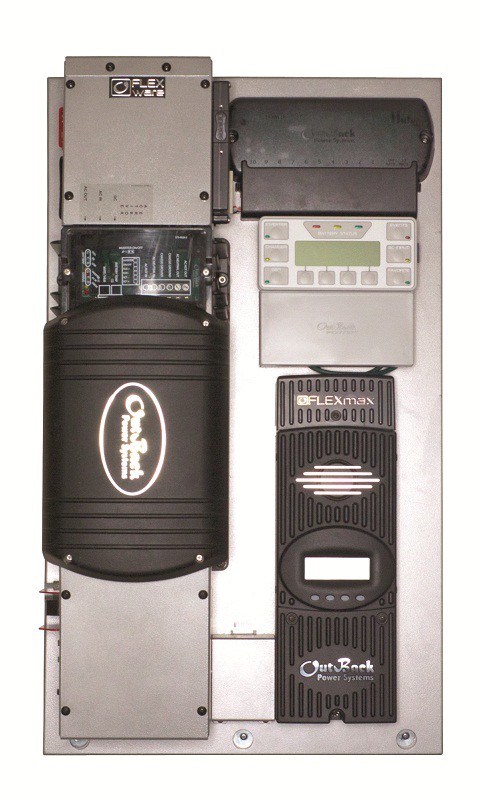

The Outback Power FP1-VFX3648 pre-wired Inverter assembly features the Outback Power VFX3648 inverter for off grid use. The inverter can provide 3600 Watts of power from your 48V battery bank for your 120VAC only loads. This factory pre-wired and tested assembly includes an 80 Amp solar charge controller, HUB4, MATE3 control/display, FLEXnet DC datalogger and Surge Suppressor for a complete inverter solution.
The new FLEXpower ONE System accommodates all of the essential protective devices in the smallest possible space at the lowest installed cost, making it ideal for applications with modest power requirements such as cabins, chalets, homes, remote communication sites and backup power systems. Utilizing an extremely compact design and an easy-to-install mounting bracket, the fully pre-wired and factory tested FLEXpower ONE System is designed for a quick installation, saving both time and money.
FLEXpower ONE includes a single inverter, AC and DC wiring boxes, a single FLEXmax Charge Controller, MATE3, HUB, FLEXnet DC and Surge Protector while maintaining a small system footprint. The FLEXpower ONE System is also equipped with battery and PV array breakers, a PV GFDI breaker, an Input-Output-Bypass Assembly, mounting locations for both AC GFCI Type B and EU Type F style outlets, and additional AC breakers. FLEXpower ONE components carry all of the necessary ETL Certifications allowing for a code compliant installation that saves both time and money while still looking great.
The OutBack Power FLEXpower ONE System is the great choice when you need a fully integrated, true sine wave, reliable power system.
Select a 48 Volt Outback Power Battery package from the list to complete the system:
10 kWh AC or 12 kWh AC or 13 kWh AC or 15 kWh AC or 19 kWh AC or 20 kWh AC or 22 kWh AC
