Length: 64.00 IN
Width: 60.80 IN
Thickness: 26.00 IN
Enclosure Type: Pad/Ground
Material: Aluminum
Available Finish: Powder Coat
Overall Dims (HxWxD – IN): 64 x 60.8 x 26
Need to integrate a back panel with a charge controller and a battery? We can design, build, and integrate a complete system for your solar battery enclosure! Take the guesswork out of your solar system and let us put together the perfect solution for you.
Ameresco Solar supplies and distributes a complete line of enclosures to accommodate a wide range of off-grid applications. We have a large selection of enclosures and control cabinets ranging from single battery pole, ROHN tower and wall mounted, to custom multi-battery enclosures. Our enclosure line has the flexibility to meet your storage needs.
Enclosure Details

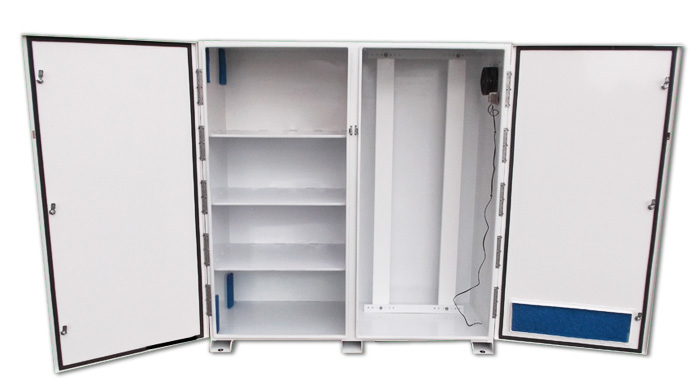

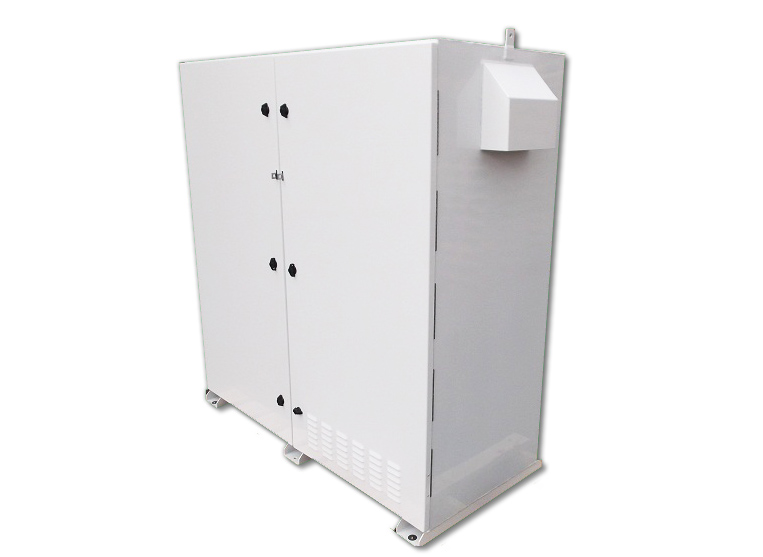

The EB20-0072 is a white powder coated aluminum enclosure for pad or ground mounted applications. It has the capacity to house an Outback 4kW or 8 kW inverter with charge controllers or FP1 pre-wired panel (FPR pre-wired panel does not fit). Includes a back panel with Includes 120VAC fan with thermostat and120V 1 A breaker.
Fits up to 8-8D or 16 Outback 200RE/GH/NC batteries.
