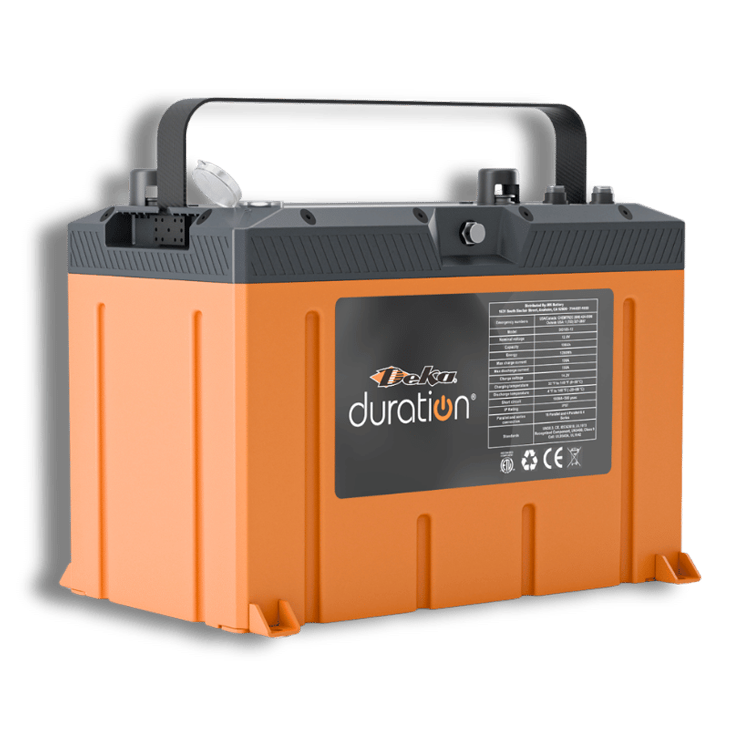

Part Number: DD100-12H
Manufacturer: MK Battery
Voltage: 12.8
Amps: 100
Length: 12.1 IN
Width: 6.6 IN
Thickness: 8.3 IN
PDF-Datasheet: DOWNLOAD HERE

FEATURES

• 12V LiFePO₄ – 12.8V nominal lithium iron phosphate chemistry
• Certified – Cell-level UL 9540A testing, UN38.3, UL 1973 Recognized Component, IEC 62619, CE
• Integrated BMS – Built-in protection and system management
• IP67 Rated – Dust-tight and water-resistant enclosure
• Fire-Rated Housing
• ABS + PC industrial enclosure
• Heated Options – Reliable performance in cold climates
• Monitoring – Real-time battery monitoring and diagnostics

PERFORMANCE

• 99% Efficiency – Optimized energy utilization
• Extended Cycle Life – Up to 6,000 cycles
•  1C Charge / Discharge – Fast Charge and Discharge rate
• Cell Balancing – Optimizes battery performance and longevity
• Smart Communication – Battery to inverter and battery to battery communication
• Up to 100% DoD – Deep Cycle performance
• Optimal Duty Cycle – Low heater consumption

BENEFITS

• Drop-in Replacement – Group 27 and 8D footprint
• Long Service Life – Lower replacement frequency
• Maintenance-Free – Set-and-forget lithium performance
• Expandable Systems – Scalable configurations with up to 16 batteries
• Reliable Operation – Advanced protection for safe, stable performance
• Reduced replacement – and maintenance costs
