Part Number: 878-3801
Manufacturer: Schneider Electric
AC Frequency: 60
AC Power Rating: 3800 W
PDF-Datasheet: Download Here

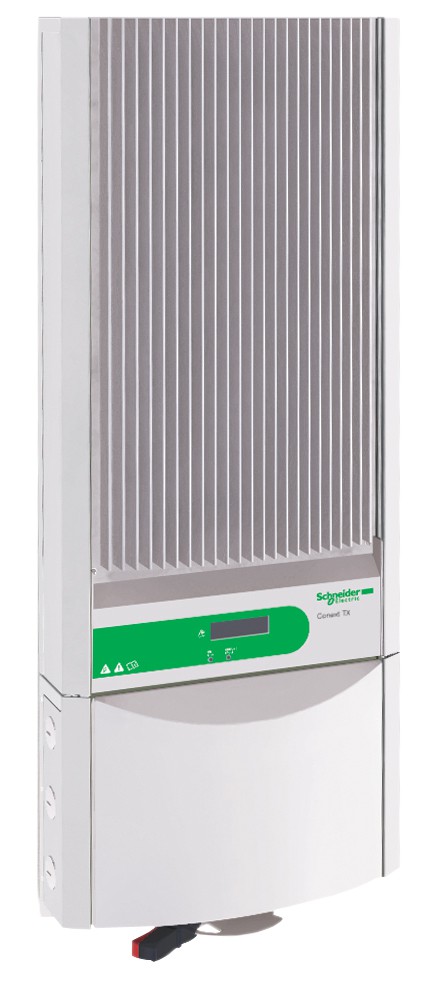

Offering high performance, clean aesthetics, innovative features, and easy installation, the Conext™ TX provides great value in a compact high-frequency design. The Conext TX may be installed as a single inverter for a single PV array or in a multiple inverter configuration for large PV systems or three-phase applications.
Benefits
Superior Design
- Compact package and light weight
- Included 600V Square D DC/AC safety disconnect for a clean, compact installation
- Passively cooled for low noise, increased reliability, and increased installation options
- LCD vibration sensor allows the tap of a finger to turn backlight on and cycle through display screens
Excellent Energy Harvest
- Wide maximum power point tracking (MPPT) window from PV solar array maximizes energy harvest and increases array design flexibility
- Innovative Fast Sweep MPPT increases energy harvest in shaded installations
- High efficiency CEC weighted up to 96%
Easy to Install and Service
- Convection cooled increased mounting options, mounts on standard 16” stud configuration
- Easy access DC (PV) and AC (Utility) terminal blocks simplify wiring
- Power levels optimized for common service panel breaker sizes
- Simple communications set-up for daisy-chained single-phase and three-phase installations
- Sealed inverter enclosure can be quickly separated from wiring box allowing DC/AC connections to remain intact during service event
Schneider Electric Bankability
- Strong Financial partner – 22 billion in Sales in 2011
- Global service and support infrastructure and local presence in over
- 100 countries
- In business for 170+ years with worldwide leadership in power electronics and electrical distribution technologies
Designed for Reliability
- Multiple Environmental Over Stressed Testing (MEOST)
Applications
- Residential and commercial installations (208 or 240 V)
- Compatible with other Series models to customize the inverters to the array
