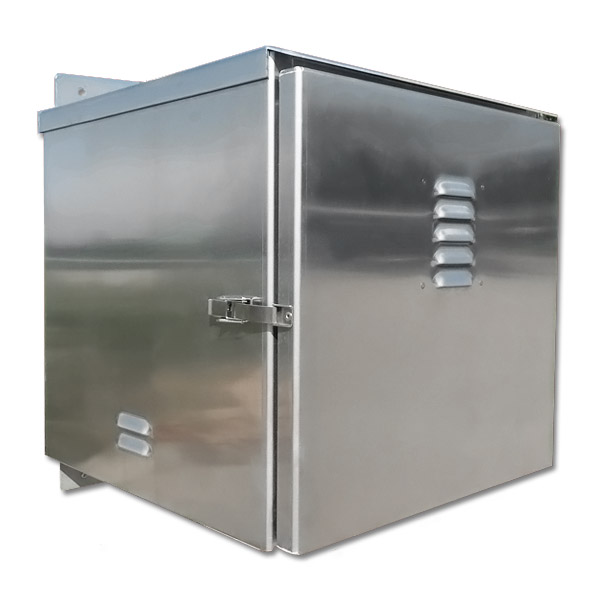

BBA-2, Solar Battery Box (Accommodates 2 Batteries)

Part Number: BBA-2
Manufacturer: OEM
Material: Aluminum (Standard), Stainless Steel
Available Finish: Mill (Standard), Powder Coat
UL Approved: Yes
NEMA Rating: 3R, 4, 4X
Overall Dims (HxWxD – IN): 22.625 x 19.25 x 19.625

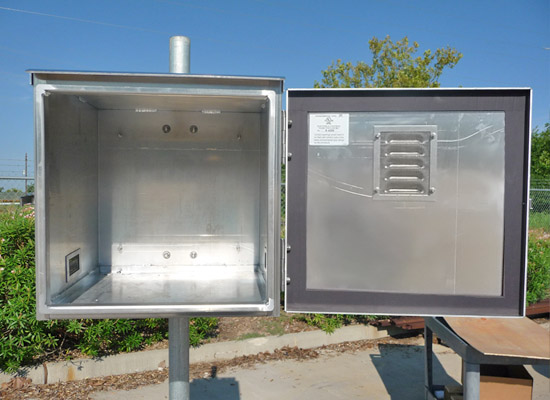

Inside Dims (HxWxD – IN): 17.875 x 17.75 x 18.75
Opening Dims (HxWxD – IN): 15.125 x 15.75

PDF-Datasheet:  Download Here

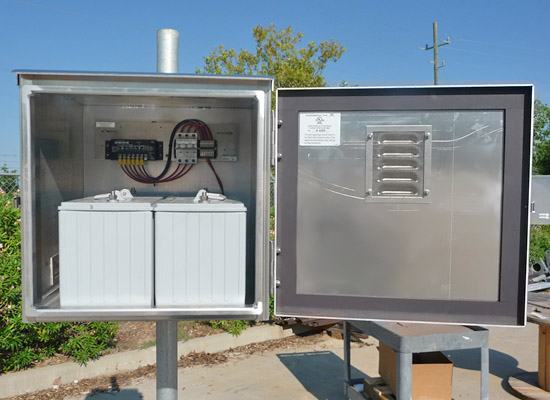

Need to integrate a back panel with a charge controller and a battery? We can design, build, and integrate a complete system for your solar battery enclosure! Take the guess work out of your solar system and let us put together the perfect solution for you.

Ameresco Solar supplies and distributes a complete line of enclosures to accommodate a wide range of off-grid applications. We have a large selection of enclosures and control cabinets ranging from single battery pole, ROHN tower and wall mounted, to custom multi-battery enclosures. Our enclosure line has the flexibility to meet your storage needs.

Our BBA-2 Series Features Include:

UL Listed
  • UL 508A, NEMA 3R (standard)
  • NEMA 3R, NEMA 4, NEMA 4X
  • Aluminum
  • Stainless Steel (304 or 316)
  • 32 lbs
Battery Capacity
  • (2) Class : 27 Series
  • (2) Class : 31 Series
  • (4) Class : U1 Series
Back Panel Dimensions (HxW – IN)
  • 14.5″ x 15.0″
Available Options

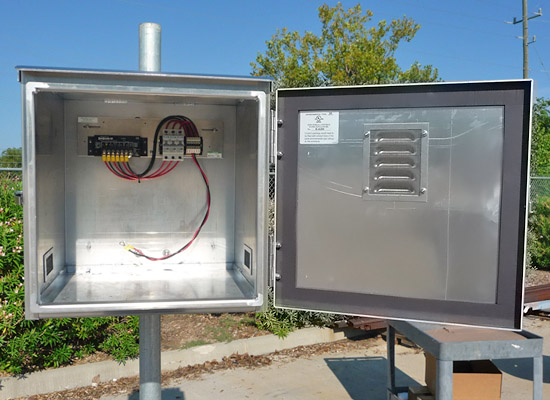

  • Custom designed assembly (e.g., charge controller, breakers, wiring, backplate)
  • Door fan
  • Banding attachment
  • Breather
  • Drains
  • Heat stripping
  • Insulation
  • Sun shields
  • Key lock
