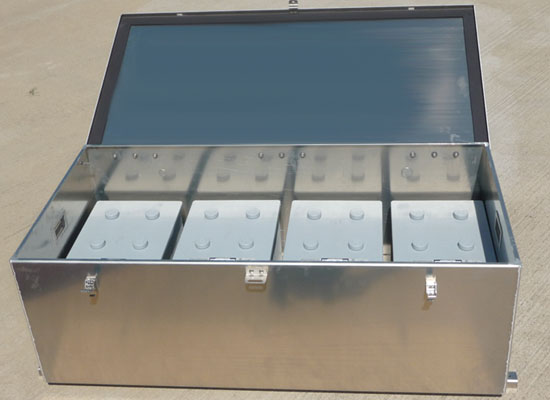

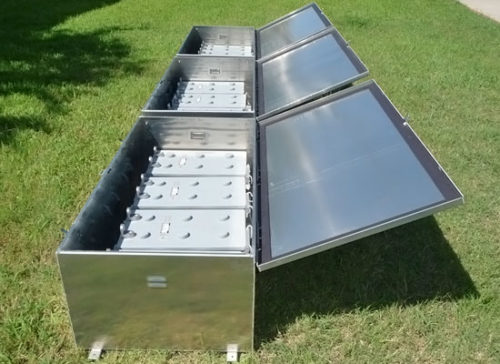

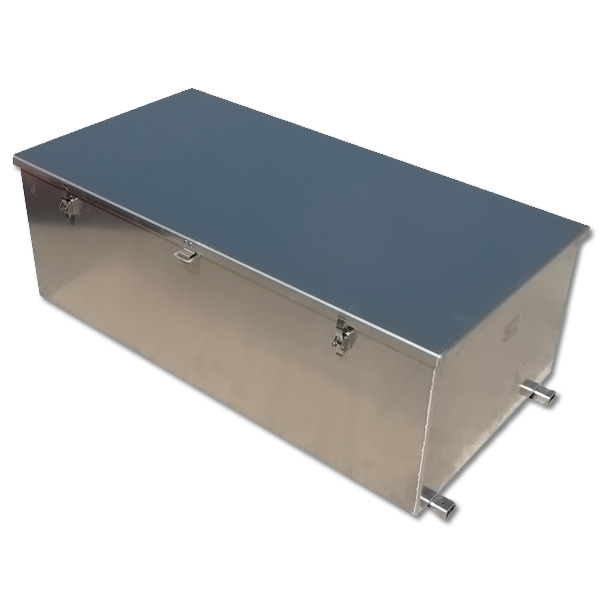

BBA-10, Solar Battery Box (Holds 10 Batteries)

Part Number: BBA-10
Manufacturer: OEM
Material: Aluminum (Standard), Stainless Steel
Available Finish: Mill (Standard), Powder Coat
UL Approved: Yes
NEMA Rating: 3R, 4, 4X
Overall Dims (HxWxD – IN): 17.5 x 51.25 x 26.0
Inside Dims (HxWxD – IN): 15.875 x 48.0 x 24.0
Opening Dims (HxWxD – IN): 23.25 x 47.25
PDF-Datasheet:  Download Here

Need to integrate a back panel with a charge controller and a battery? We can design, build, and integrate a complete system for your solar battery enclosure! Take the guesswork out of your solar system and let us put together the perfect solution for you.

Ameresco Solar supplies and distributes a complete line of enclosures to accommodate a wide range of off-grid applications. We have a large selection of enclosures and control cabinets ranging from single battery pole, ROHN tower and wall mounted, to custom multi-battery enclosures. Our enclosure line has the flexibility to meet your storage needs.

Our BBA-10 Features Include:

UL Listed
  • UL 508A, NEMA 3R (standard)
  • NEMA 3R, NEMA 4, NEMA 4X
  • Aluminum
  • Stainless Steel (304 or 316)
  • 64 lbs
Battery Capacity
  • 10 – BCI Group 27
  • 10 – BCI Group 30
  • 10 – BCI Group 31
  • 4 – BCI Group 8G4D
  • 4 – BCI Group 8G4D
Back Panel Dimensions – Optional (HxW – IN)
  • 14.5″ x 22.5″
Available Options
  • Custom designed assembly (e.g., charge controller, breakers, wiring, back panel)
  • Door fan
  • Banding attachment
  • Breather
  • Drains
  • Heat stripping
  • Insulation
  • Sun shields
  • Key lock
