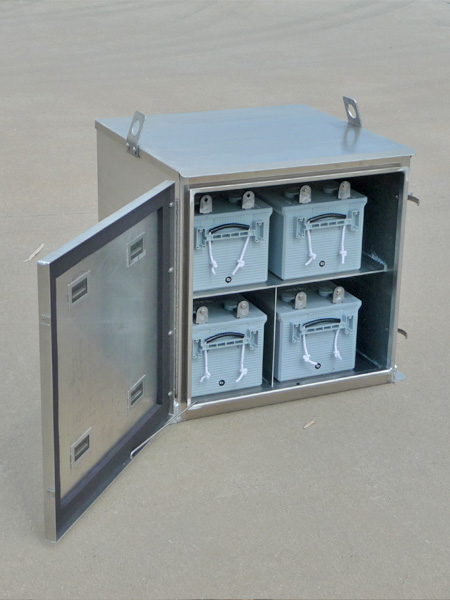

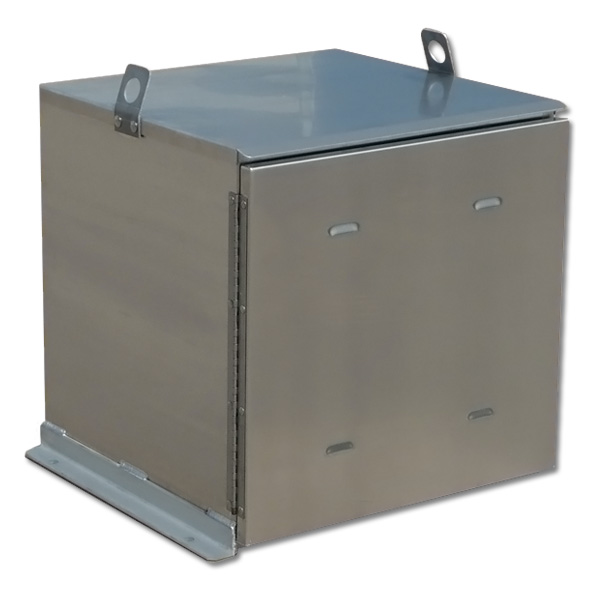

8G8D-2X2-MA,Solar Battery Box (Holds 4 Battery)

Part Number: 8G8D-2X2-MA
Manufacturer: OEM
Material: Aluminum, Stainless Steel
Available Finish: Mill (Standard), Powder Coat
UL Approved: No
NEMA Rating: 3R, 4, 4X
Overall Dims (HxWxD – IN): 31.25 x 31.5 x 27.0
Inside Dims (HxWxD – IN): 28.0 x 27.5 x 24.75
Opening Dims (HxWxD – IN): 23.5 x 24.875

Need to integrate a back panel with a charge controller and a battery? We can design, build, and integrate a complete system for your solar battery enclosure! Take the guesswork out of your solar system and let us put together the perfect solution for you.

Ameresco Solar supplies and distributes a complete line of enclosures to accommodate a wide range of off-grid applications. We have a large selection of enclosures and control cabinets ranging from single battery pole, ROHN tower and wall mounted, to custom multi-battery enclosures. Our enclosure line has the flexibility to meet your storage needs.

Our 8G8D-2X2-MA Features Include:

UL Listed
  • UL 508A, NEMA 3R (standard)
  • NEMA 3R, NEMA 4, NEMA 4X
  • Aluminum
  • Stainless Steel (304 or 316)
  • 79 lbs
Battery Capacity
  • 4 – BCI Group 8G8D
  • 4 – BCI Group 8G4D
Available Options
  • Breather-drain (ECD15) for NEMA4/4X (Required for all battery applications)
  • Heat strips (120V 150W with thermostat)
  • Interior insulation (Low E)
  • Sun shields – available for top, sides, and door
  • Key lock (#1 or #2 Pelco)
