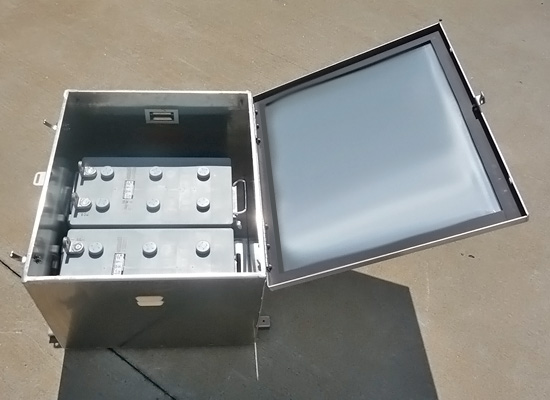

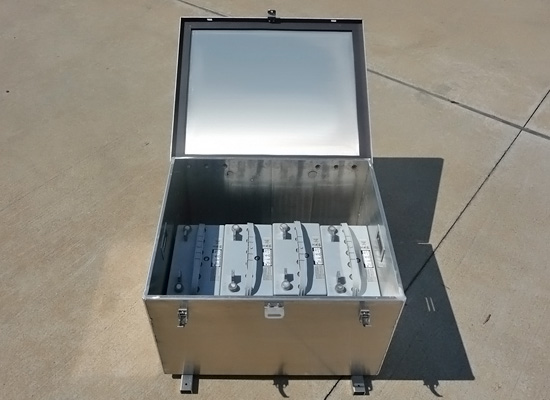

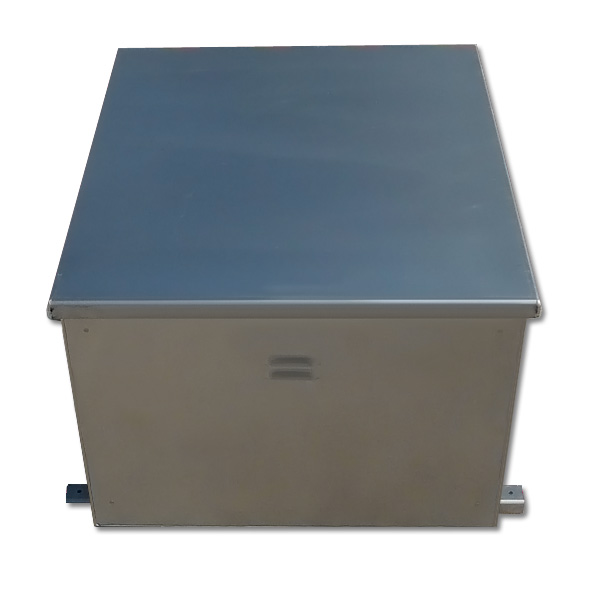

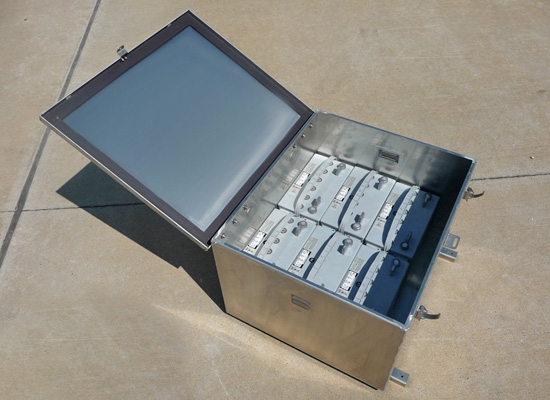

4BS2000BP, Solar Battery Box (Holds 6 Batteries)

Part Number: 4BS2000BP
Manufacturer: OEM
Material: Aluminum (Standard), Stainless Steel
Available Finish: Mill (Standard), Powder Coat
UL Approved: Yes
NEMA Rating: 3R, 4, 4X
Overall Dims (HxWxD – IN): 17.75 x 27.875 x 27.0
Inside Dims (HxWxD – IN): 16.125 x 26.75 x 22.75
Opening Dims (HxWxD – IN): 26.0 x 22.0

PDF-Datasheet:  Download Here

Need to integrate a back panel with a charge controller and a battery? We can design, build, and integrate a complete system for your solar battery enclosure! Take the guesswork out of your solar system and let us put together the perfect solution for you.

Ameresco Solar supplies and distributes a complete line of enclosures to accommodate a wide range of off-grid applications. We have a large selection of enclosures and control cabinets ranging from single battery pole, ROHN tower and wall mounted, to custom multi-battery enclosures. Our enclosure line has the flexibility to meet your storage needs.

Our 4BS2000BP Features Include:

UL Listed
  • UL 508A, NEMA 3R (standard)
  • NEMA 3R, NEMA 4, NEMA 4X
Materials
  • Aluminum
  • Stainless Steel (304 or 316)
Weight
  • 39 lbs
Battery Capacity
  • 6 – BCI Group 27
  • 4 – BCI Group 30
  • 4 – BCI Group 31
  • 2 – BCI Group 8G4D
  • 2 – BCI Group 8G4D
Back Panel Dimensions – Optional (HxW – IN)
  • 14.5″ x 22.5″

Available Options

  • Custom designed assembly (e.g., charge controller, breakers, wiring, back panel)
  • Door fan
  • Banding attachment
  • Breather
  • Drains
  • Heat stripping
  • Insulation
  • Sun shields
  • Key lock
