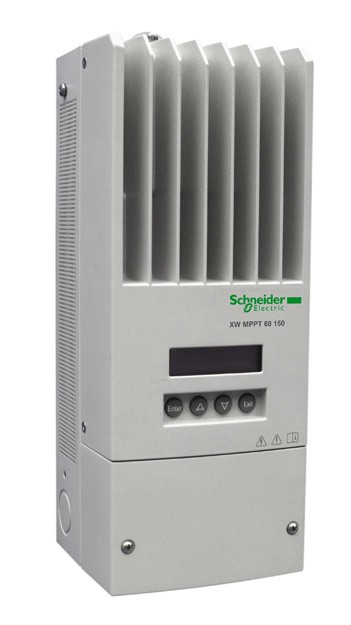

XW-MPPT60-150, 60 Amp, 150 V solar charge controller

Part Number: 865-1030-1
Manufacturer: Schneider Electric
Voltage: 12/24/36/48
Amps: 60
Controller Type: MPPT
Meter: Yes
Length: 14.50 IN
Width: 5.75 IN
Thickness: 5.50 IN
PDF-Datasheet: Download Here

The MPPT 60 150 is a photovoltaic (PV) charge controller that tracks the maximum power point of a PV array to deliver the maximum available current for charging batteries. When charging, the MPPT 60 150 regulates battery voltage and output current based on the amount of energy available from the PV array and state-of-charge of the battery.


Easy to install:

  • Configurable auxiliary output
  • LCD screen with face plate buttons for configuration and system monitoring
  • Integrated PV ground fault protection for negative grounded arrays


  • Stand-alone application or full integration with Conext XW and Conext SW Inverter charger system
  • Compatible with any brand of PV Module
  • Available remote monitoring and configuration

Higher return on investment:

  • Maximum Power Point Tracking (MPPT) algorithm continually seeks the maximum power available from the PV array
  • Improve battery life with selectable multi-stage temperature compensated charging
  • Five-year standard warranty


  • Residential, backup power and grid-tie
  • Off-grid solar
  • Community Electrification
